Research

Temperature reading

Temperature reading and identification solution with Biolog-Temp injector, RS 1000 reader and its software.

Bluetooth and USB connexion between RS 1000 reader and the software.

The data retrieved by the software can be used via the software interface or an Excel export.

Download the presentation brochure

  • Identification and temperature reading solution

RS 1000 READER

Specifically designed for animal identification purposes, RS1000 is a portable RFID tag reader capable of reading all tags compliant with ISO HDX, FDX-B, FDX-A standards and ISO temperature sensor tags. It can store up to 1,800 codes and send them to a computer via a USB interface or Bluetooth wireless connection.

RS1000 is equipped with a dual omnidirectional antenna, which makes for rapid and reliable reading.

  • Reading of  the  animal’s  iso  tag  number  and temperature,
  • Reading distance 0 TO 15 cm  depending on the type of transponder,
  • Data transmission through bluetooth / usb link,
  • Dimensions: 280 x 83 x 55 mm, weight: 275 g,
  • Backlit graphic display 128 x 64 pixels,
  • Memory function,   storage  capacity   of  1,800 identifiers which can be transmitted to a pc via usb link,
  • Standardised ce   reader,   compliant   with   iso 11784/11785
  • Power supply:  rechargeable  battery  700  mAH NiMH

BIOLOG-TEMP

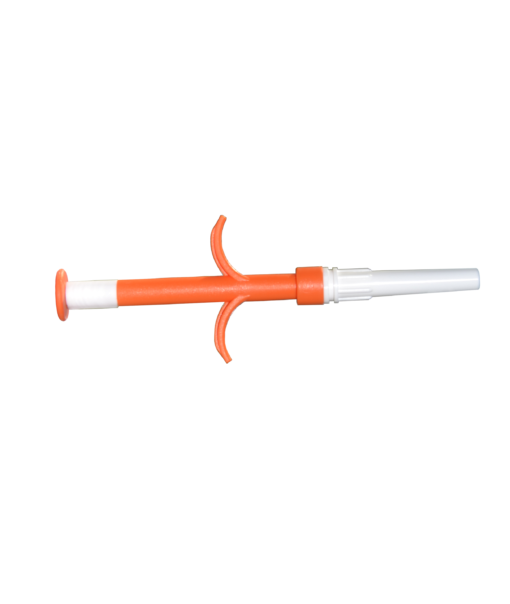

“Biolog-Temp” single-piece sterile injector, equipped with a latest-generation passive RFID identification transponder and a temperature sensor integrated into the tag’s circuit, thereby allowing the reader to simultaneously read the ID no. and the temperature.

Compliant with the usual ISO animal identification standards (ISO 11784 and ISO 11785), Biolog-Temp has the distinct advantage of monitoring the animal’s individual temperature on the implantation site, while optimising its comfort and well-being.

  • Ready-for-use single-piece sterile injector,
  • Size of the tag: 2.1 mm x 13 mm
  • Weight: 0.109 g (+/- 0.030 g),
  • Storage temperature: – 40°C to + 90°C,
  • Operating temperature: – 25°C to + 85°C,
  • Temperature control range: + 33°C to + 43°C,
  • Biocompatible,
  • BioBond anti-migration technology,
  • Temperature sensor,
  • RFID FDX-B (full duplex), passive transponder uses the 134.20 khz frequency,
  • iso 11784/11785 international certification
  • Compliant with ISO 11135 and 11607 sterility standards for the sterilisation of Medical devices
