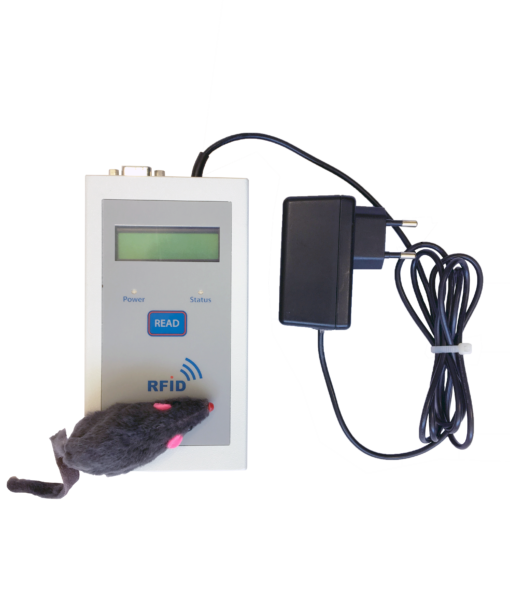

PRD 651-19 Reader
The PRD 651 reader is a fixed tablet-type reader used to read animal identification transponders. It complies with standards ISO 11784 / ISO 11785 and FDX B.
- Reading distance: 4 to 10 cm depending on the type of transponder,
- Interface: USB, RS232 or HID link (op- tional)
- Dimensions: L: 15 cm, w: 8.5 cm, thick.: 3 cm
- Weight: 140 g
- Display: 2 lines of 16 characters
- Power supply: 220v external power sup- ply unit
- Frequency: 134.2 kHz
- Reading indicator and beep
- Antenna: integrated
FonctionalitIEs
Continuous reading of all transponders in accordance with standards ISO 11784 and 11785
(FDX-B). The management of duplicate readings can be configured.
DATA FRAME FORMAT
‘999000000000001’ 999: 3-character country code or manufacturer code, 000000000001: 12-character transponder number and CR LF: end of frame.
